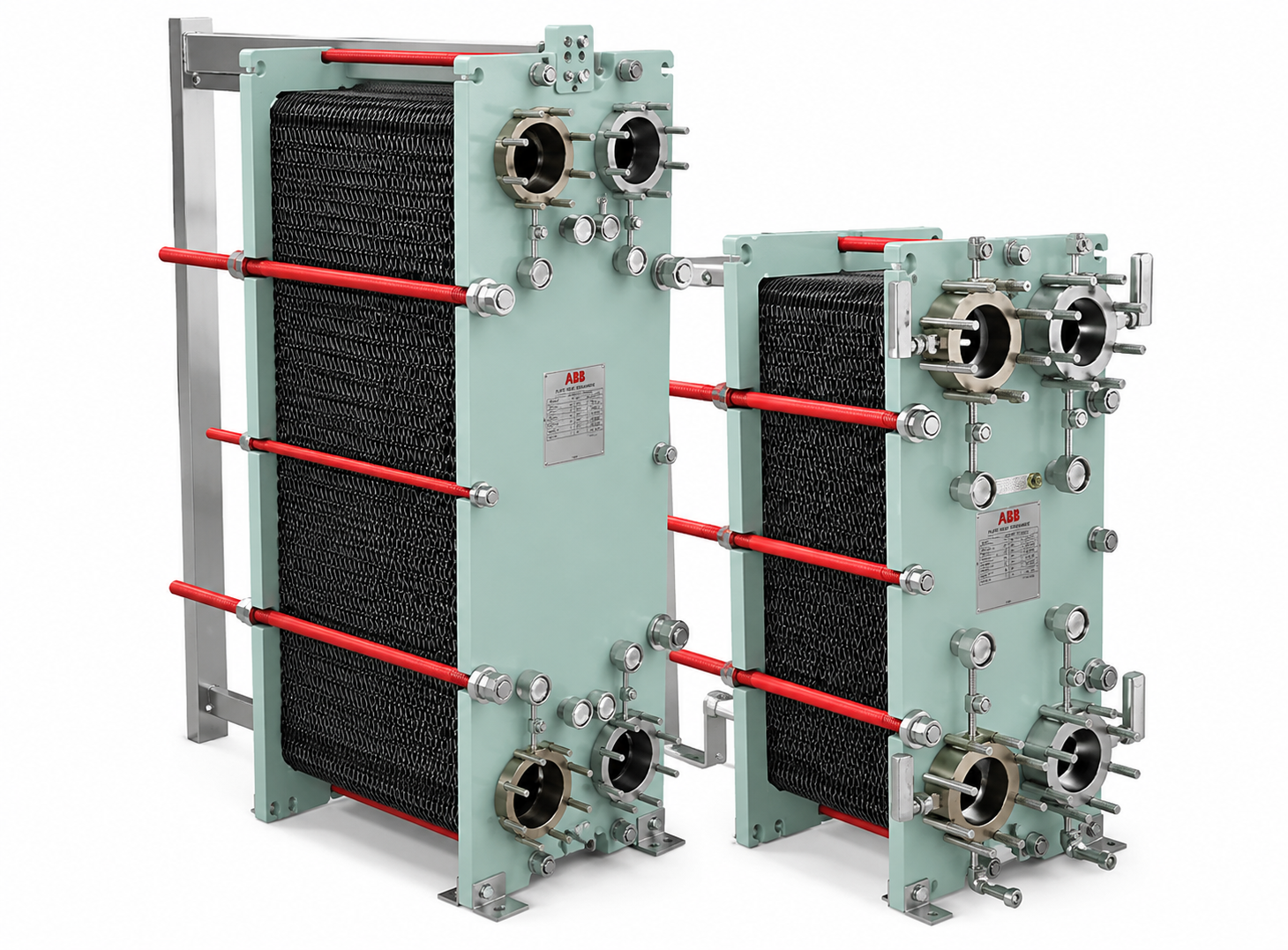

Marine gasketed plate heat exchangers are designed for reliable, energy-efficient heating and cooling onboard vessels. Their compact plate-and-frame construction provides efficient thermal performance while helping reduce installation footprint and simplify inspection and maintenance.

Suitable marine applications include engine-room central cooling, general heating and cooling, heat recovery, condensation, evaporation, and glycol heating onboard Floating Storage and Regasification Units (FSRU).

T6
T10
T15
T21
T25
T35
TS45
T45
T50
Send Inquiry Call Now
Available Heat Exchanger Models

Marine GPHE Model Details

T6 - DN 60
Height890 mm
Width320 mm
Temperature0 to 150°C
Pressure16 bar
Max Flow Rate60 m³/h
Capacity*800 kW
T10 - DN 100
Height1054 mm
Width470 mm
Temperature0 to 150°C
Pressure16 bar
Max Flow Rate160 m³/h
Capacity*3,000 kW
T15 - DN 150
Height1833 / 1781 mm
Width610 / 650 mm
Temperature0 to 180°C
Pressure16 bar
Max Flow Rate370 m³/h
Capacity*9,000 kW
T21 - DN 200
Height2082 mm
Width755 mm
Temperature0 to 100°C
Pressure10 bar
Max Flow Rate650 m³/h
Capacity*18,000 kW
T25 - DN 250
Height2761 mm
Width913 mm
Temperature0 to 100°C
Pressure10 bar
Max Flow Rate1,000 m³/h
Capacity*28,000 kW
T35 - DN 350
Height2875 mm
Width1174 mm
Temperature0 to 100°C
Pressure8 bar
Max Flow Rate1,970 m³/h
Capacity*35,000 kW
TS45 - DN 450
ApplicationFSRU Glycol Heating
Height*2745 mm
Width*1430 mm
Temperature-50 to 150°C
Pressure15 bar
Max Flow Rate2,000 m³/h
Capacity**45,000 kW
T45 - DN 450
ApplicationFSRU Glycol Heating
Height*3540 mm
Width*1420 mm
Temperature-50 to 150°C
Pressure15 bar
Max Flow Rate3,200 m³/h
Capacity**45,000 kW
T50 - DN 500
ApplicationFSRU Glycol Heating
Height*4010 mm
Width*1550 mm
Temperature-50 to 150°C
Pressure16 bar
Max Flow Rate4,400 m³/h
Capacity**55,000 kW

Product Information

Gasketed plate heat exchangers use a series of corrugated plates assembled between a frame plate and pressure plate. Gaskets seal the channels between plates, while the fluids normally flow counter-currently to provide efficient thermal performance and a close temperature approach.

Key Alfa Laval features include CurveFlow™ for improved media distribution and reduced fouling, OmegaPort™ and FlexFlow™ for improved flow and thermal efficiency, PowerArc™ for plate rigidity, five-point alignment and SteerLock™ for reliable plate positioning, and ClipGrip™ for easier gasket attachment and maintenance.

These marine heat exchangers are suitable for engine-room central cooling as well as heating, cooling, heat recovery, condensation, evaporation and FSRU glycol-heating applications.

* TS45/T45/T50 dimensions refer to the frame plate. Capacity values are based on water duty with LMTD 6 as published on the reference page.
